TECHNICAL CHARACTERISTICS
- Price boards are manufactured in two versions: for outdoor and indoor application.
- Price boards for outdoor application have a function of automatic brightness adjustment depending on external luminescence.
- Change of information on a price boards is made through an interface cable (up to 1 kilometer length), using a radiomodem from distance of up to 200m, from a remote IR-panel or using buttons on the case.
- Protection against dust and moisture.
- Upon request price boards can be made two-sided with any quantity of rows.
- Upon request price boards can be equipped with creeping lines and/or electronic clocks.
- Colors of luminescence............ red, yellow, blue, green, white.
- Pixel brightness....................... 1,5 – 3,0 cd
- Angle of view.......................... 110°
Price Board for Fuel Filling Stations. Digit's height: 200mm or 300mm
|
|
|
|
STRUCTURE
- Indicating module for a price-board (2 or 3 rows of LEDs)
- Controller for a price-board (for 4 / 8 / 12 modules)
- Clamp box
- RS-485 interface for connection to PC
- Wireless communication device for connection with PC 1 point
- Protective glass for the indicating module
- Device of protection against overrating voltage
Indicating modules for price board can be delivered separately.
![]() Indicating module with 3 rows of LEDs (Click to enlarge picture) |
![]() Indicating module with 2 rows of LEDs (Click to enlarge picture) |

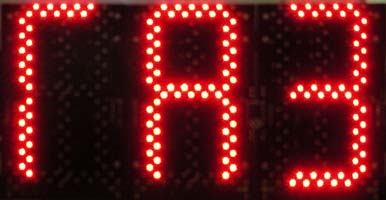

Names of fuel types can be made of LEDs:
![]() |
![]() |
Desktop price-board. Digit height - 20mm.
![Price board for petrol stations](http://www.technotrade.ua/Uploads/LED/tablo%20azs%2020mm-small.jpg)
- Names of fuels are engraved on the glass and can be highlighted with color tins.
- Digit colour – red, green.
- Digit capacity - 4.
Wall price-board. Digit height - 70 or 150 mm
![Price board for petrol stations](http://www.technotrade.ua/Uploads/LED/W_tabloH140.jpg)
![Click to enlarge picture Price board for fuel filling stations](http://www.technotrade.ua/Uploads/LED/W_tabloH140_2_lit.jpg)
- Names of fuel types are made of a film or of LEDs
- Capability to display the prices for some types of fuel consiquentially in one line.
- Digit capacity - 4.
Described above price boards are standard products. Upon request price boards can be made of a different size, with increased digit capacity of indicators, etc.
